AMD Zen 5 Architecture Deep Dive from Tech Day

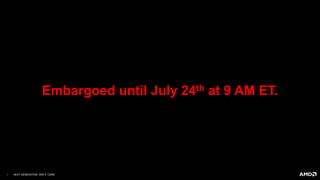

- 1. 1 | NEXT GENERATION “ZEN 5” CORE Embargoed until July 24th at 9 AM ET.
- 2. Next Generation “Zen 5” Core Mike Clark and Mahesh Subramony AMD Tech Day Update
- 3. 3 | NEXT GENERATION “ZEN 5” CORE CAUTIONARY STATEMENT This presentation contains forward-looking statements concerning Advanced Micro Devices, Inc. (AMD) such as the features, functionality, performance, availability, timing and expected benefits of AMD’s current products, future products and product roadmaps, which are made pursuant to the Safe Harbor provisions of the Private Securities Litigation Reform Act of 1995. Forward- looking statements are commonly identified by words such as "would," "may," "expects," "believes," "plans," "intends," "projects" and other terms with similar meaning. Investors are cautioned that the forward-looking statements in this presentation are based on current beliefs, assumptions and expectations, speak only as of the date of this presentation and involve risks and uncertainties that could cause actual results to differ materially from current expectations. Such statements are subject to certain known and unknown risks and uncertainties, many of which are difficult to predict and generally beyond AMD's control, that could cause actual results and other future events to differ materially from those expressed in, or implied or projected by, the forward-looking information and statements. Investors are urged to review in detail the risks and uncertainties in AMD’s Securities and Exchange Commission filings, including but not limited to AMD’s most recent reports on Forms 10-K and 10-Q. AMD does not assume, and hereby disclaims, any obligation to update forward-looking statements made in this presentation, except as may be required by law.
- 4. 4 | NEXT GENERATION “ZEN 5” CORE Performance ▪ Deliver another major 1T and 2T performance increase ▪ New Foundation of Compute for the Future ▪ AVX512 on 512-bit datapath to increase throughput and AI uplift Platform Support ▪ Deliver “Zen 5” and “Zen 5c” (compact) core variants ▪ Support configurable FP512/FP256 datapath ▪ Support scaling and energy efficiency ▪ Support 4 and 3 nm ▪ Enhanced ISA capabilities Design Objectives
- 5. 5 | NEXT GENERATION “ZEN 5” CORE NextGen Branch Predictor Caches ▪ I-Cache: 32KB, 8-way; 2x 32B fetch/cycle ▪ Op-Cache: 6K inst; 2x 6-wide fetch/cycle ▪ D-Cache: 48KB, 12-way; 4 mem ops/cycle ▪ L2-Cache: 1MB, 16-way Dual I-Fetch/decode pipes, 4 inst/pipe 8 ops/cycle dispatched to Integer or FP Execution capabilities ▪ 6 integer ALU ▪ 4 AGU, 4 addresses to LS per cycle ▪ 6 FP ops/cycle; 2-cycle FADD ▪ Full 512b AVX512 datapaths Dataflow ▪ 4 load pipes capable of 2, 512b AVX512 loads ▪ 2x width L2 cache <-> L1I and L1D caches 2 Threads per core “Zen5” MicroarchitectureOverview
- 6. 6 | NEXT GENERATION “ZEN 5” CORE Instruction Fetch Advances Branchprediction ▪ Zero-bubble conditional branches ▪ L2-sized (16K) L1 BTB and larger TAGE ▪ Larger return address stack (52entry) ▪ 2 taken predictions/cycle ▪ Up to 3 prediction windows/cycle Memory Management ▪ Aggressive Fetch hides L2 & tablewalk latency ▪ 2048 entry L2 ITLB Icachelatency andbandwidth ▪ 64B/cycle fetch ▪ 2 instruction fetch streams OptimizedBranchPrediction andFetch
- 7. 7 | NEXT GENERATION “ZEN 5” CORE Instruction DecodeAdvances OpCacheStorage ▪ 33% more entry associativity (16-way) ▪ Dense entries store 6 instructions(fused) ▪ 2 OC pipes x 6 inst/pipe =>12 inst/cycle DualDecodePipes ▪ 2 pipes support parallel independent instruction streams ▪ 4 inst/cycle throughput per pipe ▪ SMT mode gives each thread a pipe 8-widedispatchtoIntandFP NewDecodeAdvances
- 8. 8 | NEXT GENERATION “ZEN 5” CORE Integer ExecutionAdvances 8-wide dispatch, rename, retire Integerscheduleradvances ▪ Unified with age matrix ▪ More symmetry, simplifying pick 6ALUs with3multipliers,3branch units 4AGUs feedawiderLSwith4memory addresses percycle Executionwindowgrowth ▪ Scheduler growth 88 ALU/56 AGU ▪ 240 entry physical register file ▪ ROB 448 entries WiderDispatch andExecute
- 9. 9 | NEXT GENERATION “ZEN 5” CORE Load/StoreAdvances 48KB12-wayL1Dkeeping4-cycleload-to-use MoreBandwidth ▪ 4 LS pipes for a mix of 4 loads/2 stores per cycle ▪ 4 Integer load pipes can pair into 2, FP Pipes ▪ 2 store commit per cycle ▪ 64B fill/victim from/to L2 Dcache TLBs ▪ L1: 96entry Fully associative all page size DTLB ▪ L2: 4K DTLB everything but 1G LargerIn-FlightWindow ▪ Load and store queue growth ▪ Store coalescing buffer growth ▪ Scalable load ordering queue Dataprefetching ▪New 2D stride prefetcher also improves stream and region prefetchers ▪Extends workload pattern recognition IncreasedDataBandwidth
- 10. 10 | NEXT GENERATION “ZEN 5” CORE FP/Vector Math Unit Execution Advances FPmajorfeatures/changes ▪ AVX512 with full 512b datapath Morebandwidth,less latency ▪ 4 execution pipelines ▪ 2 LS/integer register pipelines ▪ 2 512b loads/cycle, 1 512b store/cycle ▪ 2-cycle FADD Executionwindowgrowth ▪ NSQ growth with 8-wide dispatch ▪ 3 larger schedulers: 1/pipe pair ▪ Physical register file doubles ▪ ROB/retire queue growth IncreasedFPCapability
- 11. IPC Frequency Area Power efficiency "Zen 5c" "Zen 5" "Zen 5” and “Zen 5c” in Heterogeneous SOC “Zen 5” and “Zen 5c” in separate core complexes “Zen 5” Optimized for maximum 1T performance ▪ High max frequency Target ▪ Large L3 per core “Zen 5c” Optimized for scalability ▪ Same IPC and features ▪ Lower max frequency ▪ Increased power efficiency ▪ Lower L3 per core Simplifies software scheduling ▪ Same IPC means no unique bottlenecks like vector performance ▪ Both support SMT ▪ Modulate between ultimate performance vs. efficiency ▪ Scheduling “mistakes” minimized over time
- 12. 12 | NEXT GENERATION “ZEN 5” CORE Attribute ISA Feature Instructions ▪ MOVDIRI/MOVD64B – move 4,8 or 64 bytes as a direct store, bypassing caches ▪ VP2INTERSECT[DQ] – AVX512 vector pair intersection to a pair of mask registers ▪ VNNI/VEX – extends AVX512 instruction to VEX encoding ▪ PREFETCH[I*] – software prefetch of instruction lines into cache hierarchy Kernel/Virtualization/QoS ▪ PMC virtualization – provides security for a guest vs. hypervisor; isolates PMC/guest ▪ Heterogeneous Topology New "Zen 5" ISA
- 13. 13 | NEXT GENERATION “ZEN 5” CORE Key “Zen 5” vs. “Zen 4” Capabilities IC/BP DE/OC/DI EX/SC LS/DC/L2 Attribute Zen 4 Zen 5 L1/L2 BTB 1.5K/7K 16K/8K Return Address Stack 32 52 ITLB L1/L2 64/512 64/2048 Fetched/Decoded Instruction Bytes/cycle 32 64 Op Cache associativity 12-way 16-way Op Cache bandwidth 9macro-ops 12 inst or fused inst Dispatch bandwidth (macro-ops/cycle) 6 8 AGU Scheduler 3x24 ALU/AGU 56 ALU Scheduler 1x24 ALU 88 ALU/AGU 4/3 6/4 Int PRF (reg/flag) 224/126 240/192 Vector Reg 192 384 FP Pre-Sched Queue 64 96 FP Scheduler 2x32 3x38 FP Pipes 3 4 Vector Width 256b 256b/512b ROB/Retire Queue 320 448 LS Mem Pipes support Load/Store 3/1 4/2 DTLB L1/L2 72/3072 96/4096 L1Data Cache 32KB/8-way 48KB/12-way L2 per core 1MB/8w 1MB/16w L2 bandwidth 32B/clk 64B/clk “Zen 5” Uplift Breakdown
- 14. 14 | NEXT GENERATION “ZEN 5” CORE “Zen 5” Core Complex speeds and feeds 32B/cycle 4 Load (Max 2 for 512b) 2 Store (Max 1 for 512b) Core 1 … Core 7 1MB L2 I+D Cache 16-way 32B/cycle 64B/cycle 64B/cycle 32K I Cache 8-way 48K D Cache 12-way 2 x 32B fetch Core 0 • Double the L2 associativity • Double the L2 Bandwidth • Low latency L3 with 320 L3 in-flight misses • Baseline from “Zen 4”: • Fast private 1MB L2 cache • L3 shared among all cores in the complex • L3 is filled from L2 victims • L2 tags duplicated in L3 for probe filtering and fast cache transfer 32MB L3 I+D Cache 16-way
- 15. 15 | NEXT GENERATION “ZEN 5” CORE Zen5 Core Complexes across SOCs 8-Classic 32MB L3 4-Classic 16MB L3 8-Compact 8MB L3 N-Classic/Compact X-MB L3 • “Strix Point” • Heterogenous Architecture • Dual CCXs • 4-Classic -16MB L3, 8-Compact – 8MB L3 • “Granite Ridge” • Homogenous Architecture • Upto Dual CCDs • 8-Classic – 32MB L3 • Futures • Smaller, Larger CCXs • Homogenous or Heterogenous • Data Center to Embedded N-Classic/Compact X-MB L3 N-Classic/Compact X-MB L3
- 16. 16 | NEXT GENERATION “ZEN 5” CORE • CPU • 4C8T Zen5 – 1MB L2/core, 16MB L3 CCX • 8C16T Zen5c – 1MB L2/core, 8MB L3 CCX • Datapath – 32B/cycle port each • GPU • 8 WGP (16 CU) RDNA 3.5 • Datapath – 4 x 32B/cycle ports • NPU • 4 x 8 Array XDNA 2 Inference Engine • Datapath – 32B/cycle • Accelerators / uControllers • Video Encode/Decode • Audio Co-processor • Display Controller • System Management, Security, Wireless Manageability • IO • 128b LPDDR5/DDR5 (7500/5600 MT/s) • 16L PCIe Gen4 • 4 Simultaneous display streams • 8 USB ports • 2 USB4 v1 • 1 USB3 Type-C • 2 USB3.2 Gen2 • 3 USB2 • I2c, SPI/eSPI, GPIO RDNA3.5 (Upto 16 Compute Units) 2MB L2 Cache 16 CU 4RB+ AMD Radeon 800M Graphics Complete System Connectivity Integrated Sensor Fusion Hub Accelerated Multimedia Experience “Zen5” CCXs X32 DDR5 / LPDDR5 Infinity Fabric CPU CORE CPU CORE CPU CORE CPU CORE CPU CORE CPU CORE CPU CORE CPU CORE 16MB L3 Cache PCIe 4.0 GPP USB4® USB 3.1 USB 2.0 USB-C® (w/DP Mode) NVMe PCIe 4.0 SATA Wireless Managability Subsystem PCIe 4.0 Discrete GFX Sensor Fusion Hub FCH Multimedia Engines Display Controller 4 Display Support DISPLAYPORT 2 HDMI® 2.1 System Manage ment Unit Video Codec ACP AMD Platform Security Processor Microsoft Pluton Processor X32 DDR5 / LPDDR5 X32 DDR5 / LPDDR5 X32 DDR5 / LPDDR5 XDNA2 Inference Engine CPU CORE CPU CORE CPU CORE CPU CORE 8MB L3 Cach e AMD “Strix Point” SOC “Strix Point” SOC
- 17. 17 | NEXT GENERATION “ZEN 5” CORE AMD RDNA 3.5 Texture Subsystem 2x Sampler Rate, Point sampling acceleration Shader Subsystem 2x Interpolation and Comparison rates Floating point in SALU Skip single-use VGPR writes Rastor Subsystem Sub-batching allows hardware to be efficient Programmable bin order Memory Subsystem Improvements LPDDR5 awareness Improved compression AMD RDNA 3.5 Improvements Larger Engine 1SE, 2SA, 8 WGP, 4 RB+, 2MB GL2 Engine 2.9G Fmax results in >11 TFLOPs (~30% higher)
- 18. 18 | AMD XDNA 2 Architectural Innovations World’s First “Win24 Ready” NPU on x86 Processor AMD Ryzen AI “Strix” NPU SoC-Level Infinity Fabric Interface Scratchpad SRAM & Global DMAs AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile AIE Tile Improve Multi-Tasking: Up to 8x Concurrent Isolated Spatial streams Column-based Power Gating 1.6x On-Chip Memory vs. Previous Gen Broad AI Model Support Generative AI, Unlocking new AI PC Experiences Peak Performance 50 INT8 TOPS 50 Block FP16 TFLOPS Gen-on-Gen Improvements from Phoenix 2x more concurrent spatial streams 1.6x on-chip memory capacity Advanced Features Block floating point support Enhanced support for non-linear functions (tanh, exp) 50% weight sparsity Improved Power Efficiency Per column power gating Up to 2x Perf/W improvement AMD XDNA 2 Architecture
- 19. 19 | • CPU • Upto 2 x 8C16T – 1MB L2/Core, 32MB L3 CCDs • 512b datapath for FP, optimized for high frequency • Datapath – 32B/cycle port each • GPU • 1 WGP (2 CU) RDNA 2 • Datapath – 2 x 32B/cycle ports • Accelerators / uControllers • Video Encode/Decode • Audio Co-processor • Display Controller • System Management, Security • IO • 128b DDR5 5600 MT/s • 28L PCIe® Gen5 • 5 USB ports • 3 USB3.3 Type-C • 1 USB3.2 Gen2 Type-A • 1 USB2 • 4 Simultaneous display streams • I2C, SPI/eSPI, GPIO CPU CORE CPU CORE CPU CORE CPU CORE AMD “Granite Ridge” SOC “Granite Ridge” SOC CPU CORE CPU CORE CPU CORE CPU CORE 32MB L3 Cache Die-to-die Infinity Fabric SMU CPU CORE CPU CORE CPU CORE CPU CORE CPU CORE CPU CORE CPU CORE CPU CORE 32MB L3 Cache Die-to-die Infinity Fabric SMU Die-to-die Infinity Fabric Die-to-die Infinity Fabric Infinity Fabric X64 DDR5 X64 DDR5 RDNA 2 (1 Compute Unit) Multimedia Engines VCN ACP Display Controller 4 Display Support PCIe 5.0 28L USB 3.2 USB 2.0 USB-C® FCH SPI/eSPI GPIO Clocking System Manageme nt Unit
- 20. 20 | NEXT GENERATION “ZEN 5” CORE ▪ "Zen 5" : ▪ Yet another on-cadence major performance increase ▪ Balanced cross-core 1T/2T instruction and data throughput ▪ AVX512 with 512bit FP data-paths for throughput and AI uplift ▪ Efficient, performant, configurable solutions which scale: ▪ Variants: Peak performance (“Zen 5” and “Zen 5c”) ▪ Configurable FP and cache hierarchy ▪ Multiple processes across the product line ▪ “Strix Point“, “Granite Ridge” ▪ Commanding Performance and Gaming Leadership with Granite Ridge ▪ Continuing our support of the AM5 infrastructure ▪ With increased compute and efficiency across the entire chip, Strix Point delivers a no-compromise AI PC solution ▪ Continuing support in the FP8 infrastructure ▪ AMD continues to drive Leadership Performance and Efficiency Summary: AMD Delivers Again!
- 21. 21 | NEXT GENERATION “ZEN 5” CORE Disclaimer & Attribution The information presented in this document is for informational purposes only and may contain technical inaccuracies, omissions, and typographical errors. The information contained herein is subject to change and may be rendered inaccurate for many reasons, including but not limited to product and roadmap changes, component and motherboard version changes, new model and/or product releases, product differences between differing manufacturers, software changes, BIOS flashes, firmware upgrades, or the like. AMD assumes no obligation to update or otherwise correct or revise this information. However, AMD reserves the right to revise this information and to make changes from time to time to the content hereof without obligation of AMD to notify any person of such revisions or changes. AMD MAKES NO REPRESENTATIONS OR WARRANTIES WITH RESPECT TO THE CONTENTS HEREOF AND ASSUMES NO RESPONSIBILITY FOR ANY INACCURACIES, ERRORS, OR OMISSIONS THAT MAY APPEAR IN THIS INFORMATION. AMD SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE. IN NO EVENT WILL AMD BE LIABLE TO ANY PERSON FOR ANY DIRECT, INDIRECT, SPECIAL OR OTHER CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF ANY INFORMATION CONTAINED HEREIN, EVEN IF AMD IS EXPRESSLY ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. ATTRIBUTION © 2024 Advanced Micro Devices, Inc. All rights reserved. AMD, the AMD Arrow logo and combinations thereof are trademarks of Advanced Micro Devices, Inc. in the United States and/or other jurisdictions. Other names are for informational purposes only and may be trademarks of their respective owners.
- 22. 22 | NEXT GENERATION “ZEN 5” CORE Endnotes GD-122: “Zen” is a codename for AMD architecture and is not a product name. R5K-003: Testing by AMD performance labs as of 09/01/2020. IPC evaluated with a selection of 25 workloads running at a locked 4GHz frequency on 8-core "Zen 2" Ryzen 7 3800XT and "Zen 3" Ryzen 7 5800X desktop processors configured with Windows® 10, NVIDIA GeForce RTX 2080 Ti (451.77), Samsung 860 Pro SSD, and 2x8GB DDR4-3600. Results may vary. EPYC-038: Based on AMD internal testing as of 09/19/2022, geomean performance improvement at the same fixed-frequency on a 4th Gen AMD EPYC 9554 CPU compared to a 3rd Gen AMD EPYC 7763 CPU using a select set of workloads (33) including est. SPECrate®2017_int_base, est. SPECrate®2017_fp_base, and representative server workloads. SPEC®, SPEC CPU®, and SPECrate® are registered trademarks of the Standard Performance Evaluation Corporation. See www.spec.org for more information. GNR-03: Testing as of May 2024 by AMD Performance labs. "Zen 5" system configured with: Ryzen 9 9950X GIGABYTE X670E AORUS MASTER motherboard, Balanced, DDR5-6000, Radeon RX 7900 XTX, VBS=ON, SAM=ON, KRACKENX63 vs. "Zen 4" system configured with: Ryzen 7 7700X, ASUS ROG Crosshair X670E motherboard, Balanced, DDR5-6000, Radeon RX 7900 XTX, VBS=ON, SAM=ON, KRAKENX62 {FixedFrequency=4.0 GHz}. Applications tested include: Handbrake, League of Legends, FarCry 6, Puget Adobe Premiere Pro, 3DMark Physics, Kraken, Blender, Cinebench (n-thread), Geekbench, Octane, Speedometer, and WebXPRT. System manufacturers may vary configurations, yielding different results. GNR-03. CTT-001 - AMD testing as of 05/30/2024. The detailed results show average ns/day (nanoseconds per day) for the 2P Intel Xeon 8592+ system and the AMD 5th Gen EPYC (pre- production silicon) system running the namd-stmv20m test of the NAMD 2.15alpha2 benchmark. EPYC test run results followed by Xeon test run results in parenthesis. • namd- stmv20m: EPYC Normalized to Xeon 3.085x, 3.049x, 3.059x for an average of ~3.06x the performance/~206% higher performance System configurations: AMD: 2 x 128-core AMD 5th Gen EPYC on AMD reference platform; Memory: 1.5 TB RAM; BIOS: Pre-production; BIOS options: SMT=OFF, NPS=4, OS: RHEL 9.4 kernel 5.14.0- 427.16.1.el9_4.x86_64; Kernel options: amd_iommu=on iommu=pt mitigations=off; Runtime options: Clear caches, NUMA Balancing 0, randomize_va_space 0, THP ON, CPU Governor - Performance, Disable C2 States Intel: 2 x 64-core Intel Xeon 8592+ production system; Memory 1.0 TB RAM; Hyperthreading=OFF, Profile=Maximum Performance; OS: RHEL 9.4 kernel 5.14.0-427.16.1.el9_4.x86_64; Kernel options: processor.max_cstate=1 intel_idle.max_cstate=0 iommu=pt mitigations=off; Runtime options: Clear caches, NUMA Balancing 0, randomize_va_space 0, THP ON, CPU Governor=Performance Results may vary based on factors including but not limited to production silicon, system configurations, software versions and final BIOS version and settings. CTT-002: AMD internal testing as of 5/31/2024 on Llama2-7B-CHAT-HF comparing 2P 5th Gen EPYC 128C “Turin” (pre-production) powered server to 2P 5th Gen Intel Xeon 8592+ powered server. All testing with weights quantized to INT4 and with latency under msec. System Configurations: 2P 5th Gen EPYC 128-C pre-production silicon (128C/256T) on AMD reference system, BIOS: pre-production (Determinism=Power, NPS=1), Memory: 1.5TB, OS: Ubuntu® 22.04.3 LTS | 5.15.0-105-generic. 2P Xeon Platinum 8952+ (64C/128T) production system, (SNC=Disabled), Memory: 1TB ; OS: Ubuntu 22.04.3 LTS | 5.15.0-94-generic Results may vary due to factors including but not limited to production silicon, system configurations, software versions and BIOS settings.
